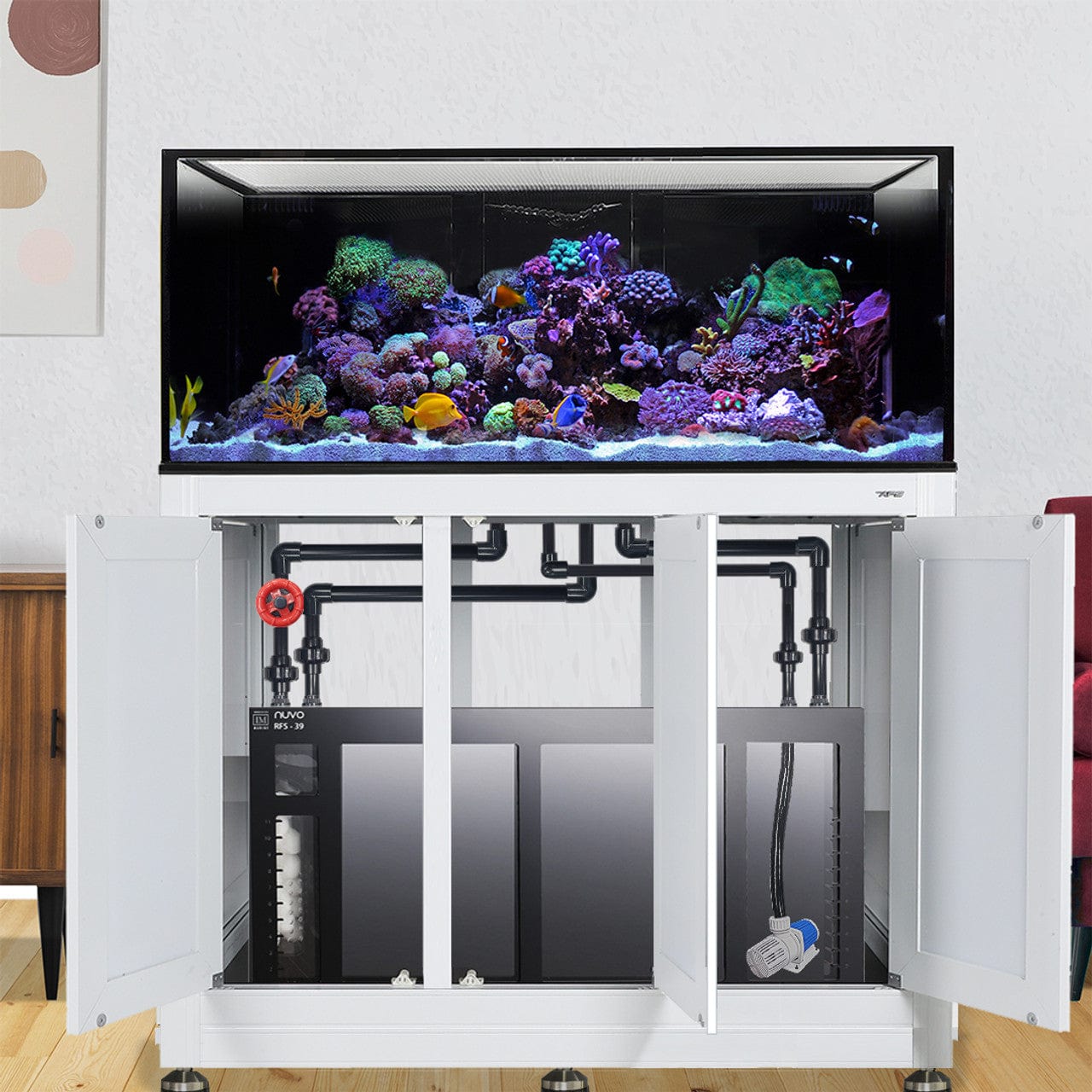

Innovative Marine 100 Gallon INT Complete Reef Aquarium System - Perfect for Saltwater Coral Fish Tanks & Marine Aquascaping

The NUVO INT 100 is Innovative Marine’s premium 100-gallon internal overflow reef aquarium system—an all-in-one solution designed to meet the demands of serious reefers. With ultra-clear low iron glass, a silent and efficient coast-to-coast Trapezoid Infinity Overflow, professional-grade sump and return system, and a sleek corrosion-resistant aluminum stand, this system delivers on performance, aesthetics, and reliability.

Aquarium Features

• Volume: Approximately 100 Gallons

• Dimensions: 47.3” L x 23.6” W x 19.7” H

• Ultra-clear 15mm low iron glass with diamond polished edges

• Trapezoid Infinity coast-to-coast overflow

• Internal “Bean Animal” style safety drain system (3 x 1” pre-drilled drains)

• One 3/4” return hole with dual LOC-LINE nozzles

• Black silicone seams and laser-cut black acrylic weir

• Includes SafeScreen mesh lid and rubber leveling mat

• Includes all return and overflow plumbing components

• Recommended return flow rate: 1000–2000 GPH

NUVO APS Stand

• Dimensions: 47.5” L x 23.5” W x 35.81” H

• Constructed from anodized aluminum – corrosion resistant and warp-free

• Modular and lightweight design with pre-cut closed-cell PVC foam boards

• Side access doors and magnetic latches

• Includes shelf board and hex torque wrench

• Designed for long-term durability in both fresh and marine environments

RFS39 Sump System

• Volume: 57 Gallons

• Dimensions: 38.6” L x 18.8” W x 18.3” H

• Reinforced double-walled acrylic frame

• Silent siphon safety drain system

• Integrated heater chamber with cord management

• Filter chamber accommodates 4” socks and includes high-performance fiber ball media

• Adjustable baffle for protein skimmer chamber

• Laser-etched water level indicators (front and side)

• Polycarbonate lid with cutouts

• Includes RO/DI push fittings, ATO hose barbs, cable holders, and LED light bracket (light sold separately)

MightyJet XL Return Pump

• Max Flow: 2,656 GPH

• Ultra-quiet DC motor with 7-speed controller

• One-touch feed mode and run-dry protection

• Dimensions: 7” x 4.09” x 5.11”

• Max Power: 85W / 24V DC

• Designed for internal use only

Complete Preassembled Plumbing Kit

• Pre-measured and glued Schedule 80 PVC components

• Includes gate valve, unions, and bulkheads

• Designed for perfect fit and fast, tool-free setup

The NUVO INT 100 Complete Reef System is designed for reefers who want a streamlined setup without compromising on quality or flexibility. Every component is carefully crafted to deliver silent operation, exceptional strength, and a clean aesthetic—all with minimal setup required. Whether you’re upgrading or starting your first large reef tank, this system is built to perform and made to last.
